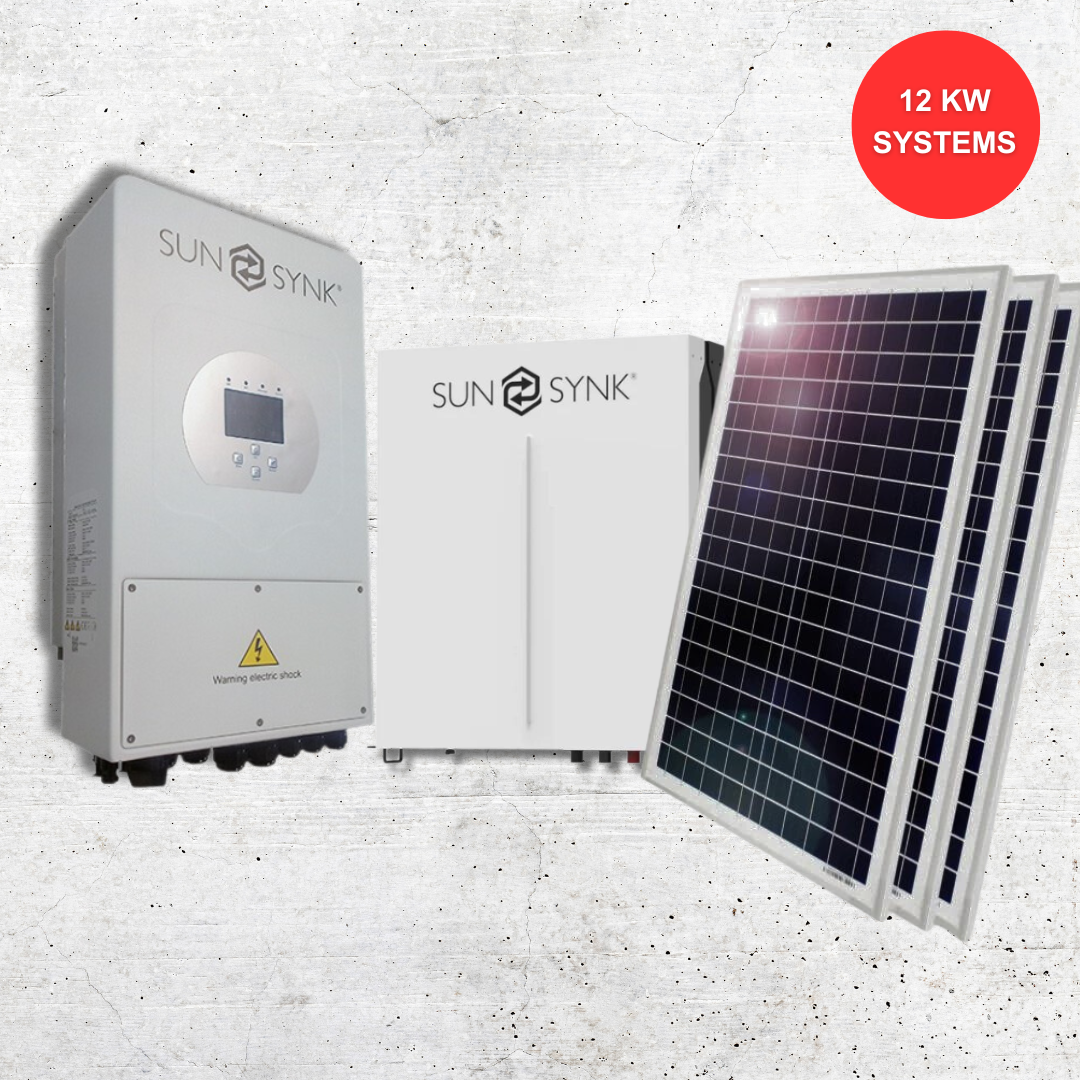

12kw SynSynk Inverter + 10.65kwh SunSynk Lithium Battery + 22x 450w Mono Solar Panels

12kW SunSynk Inverter



INTERACTIVE:

• Easy and simple to understand display

• Supporting Wi-Fi or GSM monitoring

• Visual power flow screen

• Smart settable 3-stage MPPT charging for optimized battery performance

• Auxiliary load function

• Parallel / multi invert function grid-tied and off-grid



COMPATIBLE:

• Compatible with main electrical grid voltages or power generators

• Compatible with wind turbines

• 220V single phase, pure sinewave inverter

• Self-consumption and feed-in to the grid

• Auto restart while AC is recovering

• Auto earth bond feature (Via a relay)



CONFIGURABLE:

• Fully programmable controller

• Programmable supply priority for battery or grid

• Programmable multiple operation modes: on-grid/off-grid & UPS

• Configurable battery charging – current/voltage based on applications by LCD setting

• Configurable AC / solar / generator charger priority by LCD setting



SECURE

• Overload/over-temperature/short-circuit protection

• Smart battery charger design for optimized battery protection

• Limiting function installed to prevent excess power overflow to grid



APPLICATIONS:

• Marine (vessel power management)

• Power shedding (home/office/factory)

• UPS (fuel-saving systems)
• Remote locations with solar and wind generators

• Building sites
• Military locations

• Telecommunication



10.65kWh SunSynk Lithium Battery

Sunsynk Wall Mount Battery LiFePO4 10.65 KWh SUN-BATT-10.65

• More usable Energy  – 100% depth of discharge
• Flexible Investment – Scalable from 10.65 to 85.2 kWh
• Safe and Reliable – Premium Lithium Iron phosphate(LFP) 6000 cycles
• Easy Installation – Floor stand or wall stand
• High Energy Density – Proprietary CTP technology
• Perfect Compatibility – Compatible with Major PCS Brand



Sunsynk Wall Mount Battery LiFePO4 10.65 KWh SUN-BATT-10.65 Technical Specification

• Nominal Voltage: 51.2Vdc
• Nominal Capacity: 208Ah
• Battery Energy: 10650 Wh
• Charge Voltage: 55.68~56.16Vdc
• Discharge Voltage: 45.6-56.16 Vdc
• Nominal Charge/Discharge Current: 100A
• Nominal Charge/Discharge Power: 5000W
• Max Charge / Discharge Current: 200A
• Max Charge / Discharge Power: 10000W
• Short Circuit Current: 540A



Communication:

• Display: SOC status indicator, LED indicator
• Communication: RS232、RS485、CAN



General Specification:

• Dimension: 550×160×836mm
• Weight: 90kg
• Installation: Floor stand or Wall mounted
• Working Temperature: -20℃ ~ 60℃
• Storage Temperature: ≤25℃,12 months; ≤35℃,6 months; ≤45℃,3 months
• Operating / Storage / humidity: ≤ 95%RH
• Max Operating Altitude: ≤2000m
• IP Rating: IP20
• Cell Technology: LiFePO4，Lithium Iron Phosphate
• Cycle Life: 6000 Cycles @ 80% DOD / 25℃ / 0.5C，60% EOL
• Scalability: Max 8 batteries in parallel



Standard Compliance

Certification: PACK: UN38.3、IEC62619、IEC61000
CELL: UN38.3、IEC62619、UL 1642、JET



450w HZ Mono Solar Panels

• 144 half-cut large wafer cell monocrystalline percium solar module.
• Improved lifespan and efficiency with mono percium cells.
• Excellent low-light performance.
• Certified resistance to high salt and ammonia exposure.
• 3.2mm low-iron solar glass with anti-reflective coating.
• Certified to withstand high wind loads (3600pa) and mechanical loads (5400pa).
• PID resistance certified by SGS.
• 35mm naturally anodized aluminum frame.
• IP68 rated junction box.
• 1500VDC Maximum String Voltage (IEC/UL).
• 1100mm solar cable and a pair of MC4 connectors.
• TÜV (IEC), SABS certified.
• Super High Efficiency: up to 20.70% module efficiency.
• Typical Output (Watt): 450 + 3%
• Typical Voltage (Vmp): 41.5V
• Typical Amperage (Imp): 10.85A
